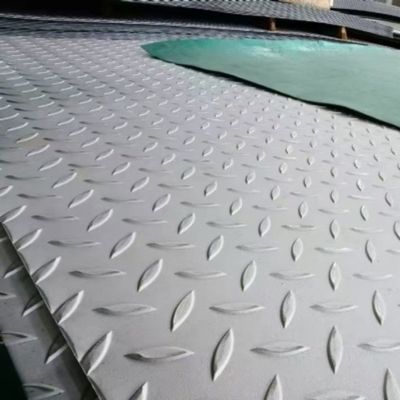

Stainless Steel 304 Checkered Plate 5mm Astm A793 Hot Rolled Floor TearDrop Plate
PRODUCT DESCRIPTION
Stainless steel checkered plate is manufactured by cold rolling sheet and hot rolling stainless steel sheet.
Due to the excellent corrosion resistance and slip resistance, it has been used in many industries as food industry, buildings, water heater, bathtub and dinnerware etc.
SPECIFICATION
THICKNESS : 1.0, 1.2, 1.5, 2.0, 2.5, 3.0mm for cold pattern; 3.0-14mm for hot pattern;
SIZE: 1000X2000MM; 1220X2440MM; 1250X2500MM, 1500X3000MM or as required;

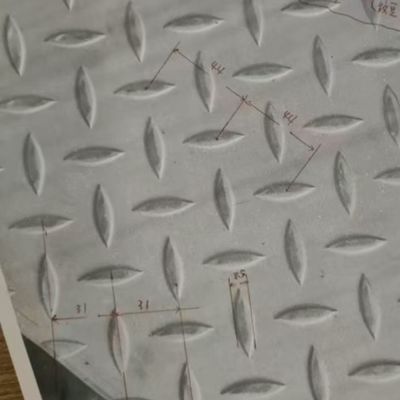

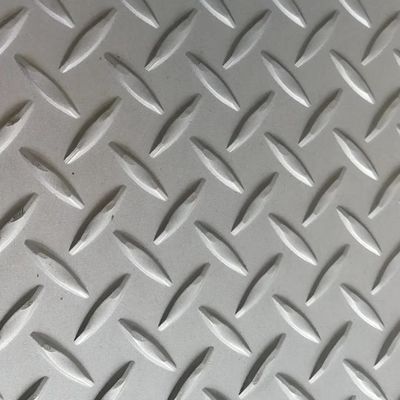

PATTERN: Many types can supplied as Diamond type, Bean type, "T" type etc.
COMMON GRADE
SS201, 202, 304/304L, 309S, 310S, 316/316L, 316Ti, 409L, 410S, 430, 446 etc.
Type 304, for most environments, is sufficient to prevent corrosion.
Type 316 should be used near the seacoast.
Low carbon grades (304L / 316L) should be used when parts are to be welded.
For extreme locations, e.g. near chemical plants or where steel may come into contact with salt water spray, different alloys will be required, subject to application review.
APPLICATION
Floor Covering and slip resistance; Commercial vehicle and vans; Access ramp covering for wheelchairs.
Wall and column protection to prevent impact damage where hand trucks, trolleys, sack carts are operated.
Door protection as kick plates or as a full door cladding etc.
Datasheet for 304 Stainless steel
| Chemical Composition% |
| Material |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
| 304L8 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
18.0~20.0 |
8.0~12.0 |
| Mechanical Properties |
| Material |
Yield Strength
N/mm2
|
Tensile Strength
N/mm2 |
Elongation
(%) |
| |
| 304L8 |
≥205 |
≥520 |
≥40 |
Application
The strength, corrosion resistance and low maintenance cost of stainless steel plates have become ideal materials for a wide range of applications, with long service life and 100% recyclability. The following are the most common uses of stainless steel plates:
1. Building structure
External cladding, indoor countertops, walls, etc. of large high-impact buildings.
2. Cars and transportation
Automobile exhaust systems, interiors and grilles, shipping containers, road tankers and garbage trucks are also suitable for the transportation of chemicals, liquids and food.
3. Medicine
Surgical and dental instruments, MRI scanners, surgical implants (such as artificial joint replacements), stainless steel pins and steel plates used to fix fractures.
4. Energy and heavy industry
High-grade stainless steel in storage tanks, valves, pipes and other parts
. 5. Dining
Kitchen accessories, tableware and cookware, sharp blades, cookware, grills, sinks and pots. It is also used to polish refrigerators, freezers, countertops and dishwashers.
6. Various metal shops
The metal shop is the world's largest supplier of small metals, stainless steel, alloy steel, etc. (including profiles and plates).
Surface
1D—The surface has discontinuous particles, which is also called matte. Processing technology: hot rolling + annealing shot peening pickling + cold rolling + annealing pickling.
2D—Slightly shiny silver-white. Processing technology: hot rolling + annealing shot peening pickling + cold rolling + annealing pickling.
2B—Silver white and better gloss and flatness than 2D surface. Processing technology: hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + quenching and tempering rolling.
BA—The surface gloss is excellent and has a high reflectivity, just like the mirror surface. Processing technology: hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + surface polishing + quenched and tempered rolling.
No.3—has better gloss and rough surface. Processing technology: Polishing and tempering rolling of 2D products or 2B with 100 ~ 120 abrasive materials.
No.4—has better gloss and fine lines on the surface. Processing technology: Polishing and tempering rolling of 2D products or 2B with 150 ~ 180 abrasive materials.
Grade Table for stainless steel
| No |
China GB |
Japan |
America |
Korea |
EU
BS EN
|
India |
Australia
AS
|
| Old |
New |
JIS |
ASTM |
UNS |
KS |
IS |
| |
| 1 |
1Cr17Mn6Ni5N |
12Cr17Mn6Ni5N |
SUS201 |
201 |
S20100 |
STS201 |
1.4372 |
10Cr17Mn6Ni4N20 |
201-2 |
| 2 |
1Cr18Mn8Ni5N |
12Cr18Mn9Ni5N |
SUS202 |
202 |
S20200 |
STS202 |
1.4373 |
|
- |
| 3 |
1Cr17Ni7 |
12Cr17Ni7 |
SUS301 |
301 |
S30100 |
STS301 |
1.4319 |
10Cr17Ni7 |
301 |
| 4 |
0Cr18Ni9 |
06Cr19Ni10 |
SUS304 |
304 |
S30400 |
STS304 |
1.4301 |
07Cr18Ni9 |
304 |
| 5 |
00Cr19Ni10 |
022Cr19Ni10 |
SUS304L |
304L |
S30403 |
STS304L |
1.4306 |
02Cr18Ni11 |
304L |
| 6 |
0Cr19Ni9N |
06Cr19Ni10N |
SUS304N1 |
304N |
S30451 |
STS304N1 |
1.4315 |
- |
304N1 |
| 7 |
0Cr19Ni10NbN |
06Cr19Ni9NbN |
SUS304N2 |
XM21 |
S30452 |
STS304N2 |
- |
- |
304N2 |
| 8 |
00Cr18Ni10N |
022Cr19Ni10N |
SUS304LN |
304LN |
S30453 |
STS304LN |
- |
- |
304LN |
| 9 |
1Cr18Ni12 |
10Cr18Ni12 |
SUS305 |
305 |
S30500 |
STS305 |
1.4303 |
- |
305 |
| 10 |
0Cr23Ni13 |
06Cr23Ni13 |
SUS309S |
309S |
S30908 |
STS309S |
1.4833 |
- |
309S |
| 11 |
0Cr25Ni20 |
06Cr25Ni20 |
SUS310S |
310S |
S31008 |
STS310S |
1.4845 |
- |
310S |
| 12 |
0Cr17Ni12Mo2 |
06Cr17Ni12Mo2 |
SUS316 |
316 |
S31600 |
STS316 |
1.4401 |
04Cr17Ni12Mo2 |
316 |
| 13 |
0Cr18Ni12Mo3Ti |
06Cr17Ni12Mo2Ti |
SUS316Ti |
316Ti |
S31635 |
- |
1.4571 |
04Cr17Ni12MoTi20 |
316Ti |
| 14 |
00Cr17Ni14Mo2 |
022Cr17Ni12Mo2 |
SUS316L |
316L |
S31603 |
STS316L |
1.4404 |
~02Cr17Ni12Mo2 |
316L |
| 15 |
0Cr17Ni12Mo2N |
06Cr17Ni12Mo2N |
SUS316N |
316N |
S31651 |
STS316N |
- |
- |
316N |
| 16 |
00Cr17Ni13Mo2N |
022Cr17Ni13Mo2N |
SUS316LN |
316LN |
S31653 |
STS316LN |
1.4429 |
- |
316LN |
| 17 |
0Cr18Ni12Mo2Cu2 |
06Cr18Ni12Mo2Cu2 |
SUS316J1 |
- |
- |
STS316J1 |
- |
- |
316J1 |
| 18 |
00Cr18Ni14Mo2Cu2 |
022Cr18Ni14Mo2Cu2 |
SUS316J1L |
- |
- |
STS316J1L |
- |
- |
- |
| 19 |
0Cr19Ni13Mo3 |
06Cr19Ni13Mo3 |
SUS317 |
317 |
S31700 |
STS317 |
- |
- |
317 |
| 20 |
00Cr19Ni13Mo3 |
022Cr19Ni13Mo3 |
SUS317L |
317L |
S31703 |
STS317L |
1.4438 |
- |
317L |
| 21 |
0Cr18Ni10Ti |
06Cr18Ni11Ti |
SUS321 |
321 |
S32100 |
STS321 |
1.4541 |
04Cr18Ni10Ti20 |
321 |
| 22 |
0Cr18Ni11Nb |
06Cr18Ni11Nb |
SUS347 |
347 |
S34700 |
STS347 |
1.455 |
04Cr18Ni10Nb40 |
347 |
